Wilderness Systems Flex Pod Sonar Install
« on: April 06, 2015, 11:09 PM »
The Wilderness Systems Thresher 140 and 155 Along with the New ATAK  are equipped with the Flex Pod OS.  The Flex Pod is a removable console positioned at the end of the footwell right behind the front storage hatch.  The flex Pod fits into a well with a large rectangular scupper hole to accommodate a variety of transducers.  The flex pod can be used for additional storage, but the main purpose is to house a sonar/gps head unit, and have a transducer mounted to it, with the inside of the pod able to store the battery and wiring.  With your Sonar installed to the Pod it makes for a very clean set up capable of being removed all as one piece and then redeployed very easily back onto the boat for the next trip.

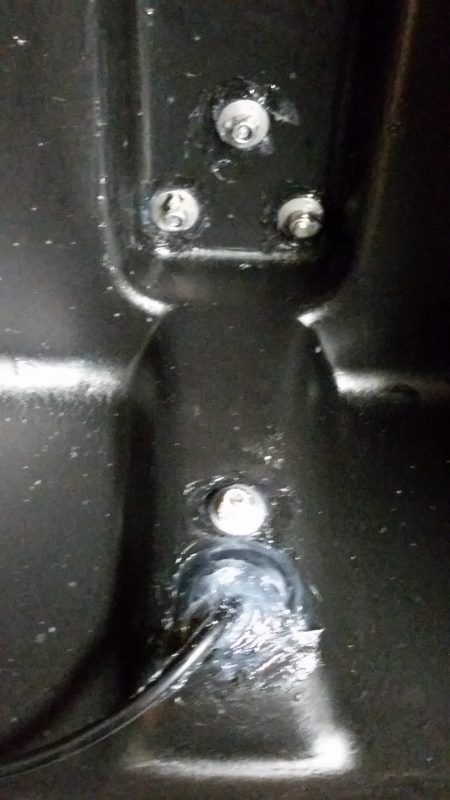

For my install  on a Thresher 140 I went with the Raymarine Dragonfly 5 Pro, but this process would work for many different head units.   I started by mounting the transducer  bracket to the bottom of the pod with three stainless steel screws with rubber backed washers and nylon lock nuts.  I drilled the holes slightly smaller than the screw diameter so when I put the screws in they “thread” themselves into the plastic.  I use silicone on all screw threads and around the nuts on the inside of the pod.

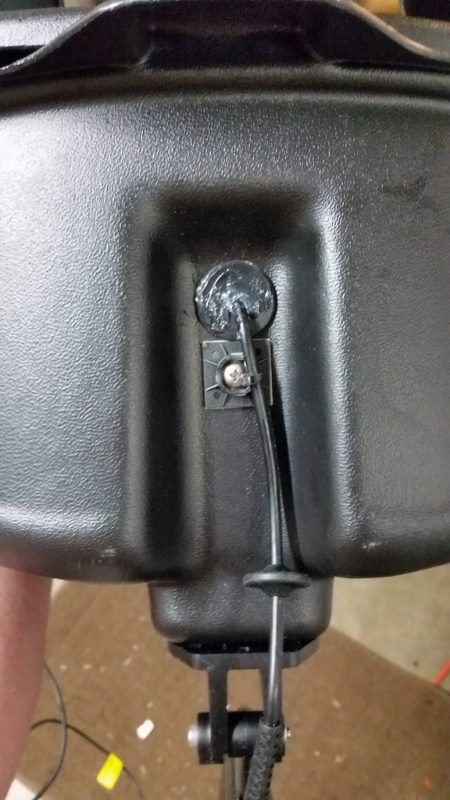

 Next I drilled a ¾” hole as close to the top of the recessed channel on the front of the pod.  I had to use a ¾” hole to fit the plug of the head unit through.  To seal the hole I used a rubber grommet cut open to go around the wire and then fit it into the hole and used plenty of silicone front and back to seal it up.  I also mounted a wire securing tab right below the hole outside and right next to it on the inside.  I zip –tied the transducer wire to both tabs.

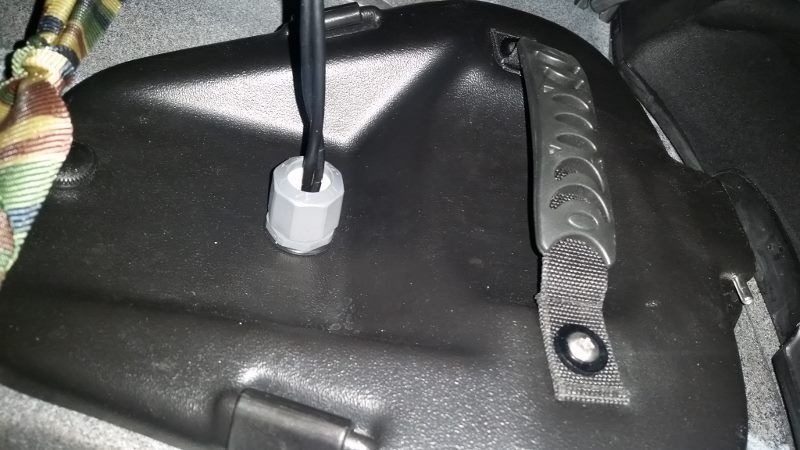

    The next step was putting the waterproof strain relief fitting into the lid of the pod.  I used a ¾” strain relief fitting available in any hardware stores electrical department.  I used this fitting because the size of the transducer plug for the dragon fly was too big for anything smaller.   I drilled a 1” hole  in the lid  and secured the fitting to the lid.  I used an extra washer between the lid and locknut along with silicone on the underside and the rubber o-ring on top of the lid.

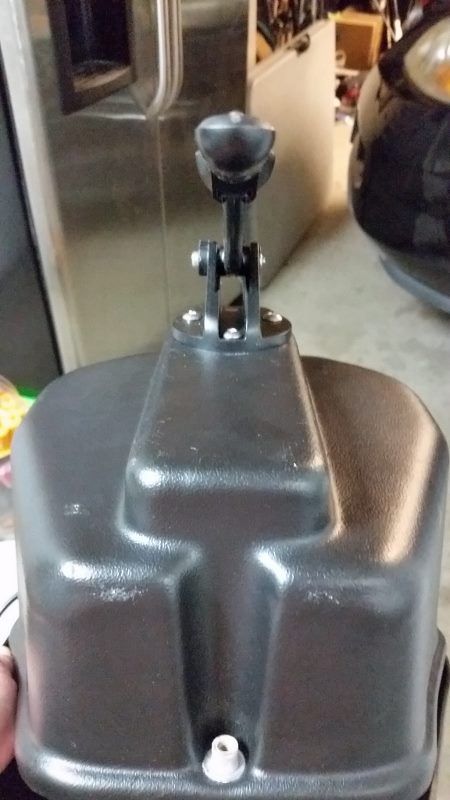

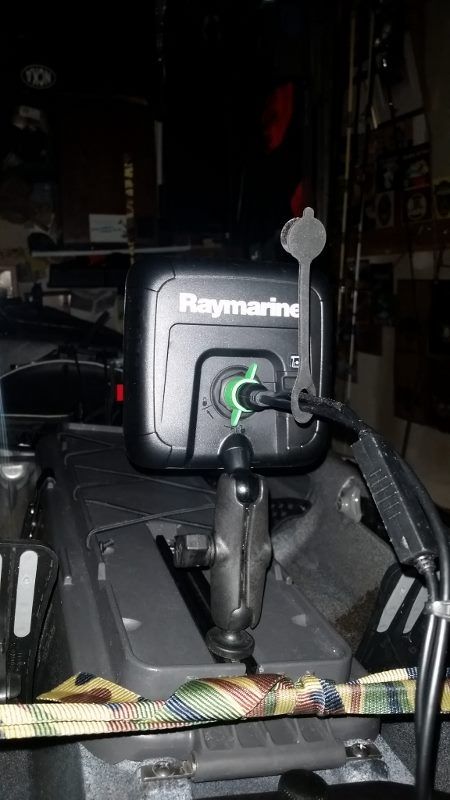

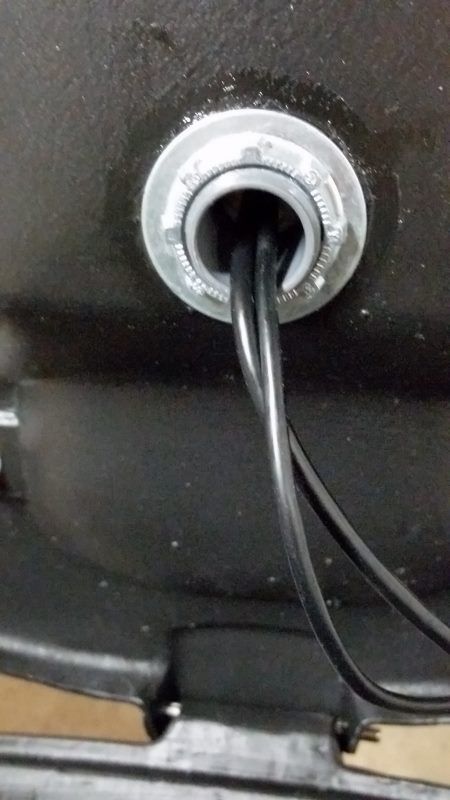

  Once the fitting was in place I fed the cables through and tightened down until the cables were firmly in place.  I used a little silicone to ensure waterproofing.   At this point the install is pretty much complete.  You could mount the unit directly to the pod or I chose to mount my head unit on a YakAttack 1” screw ball on the slidetrax on the center storage hatch of the Thresher.
